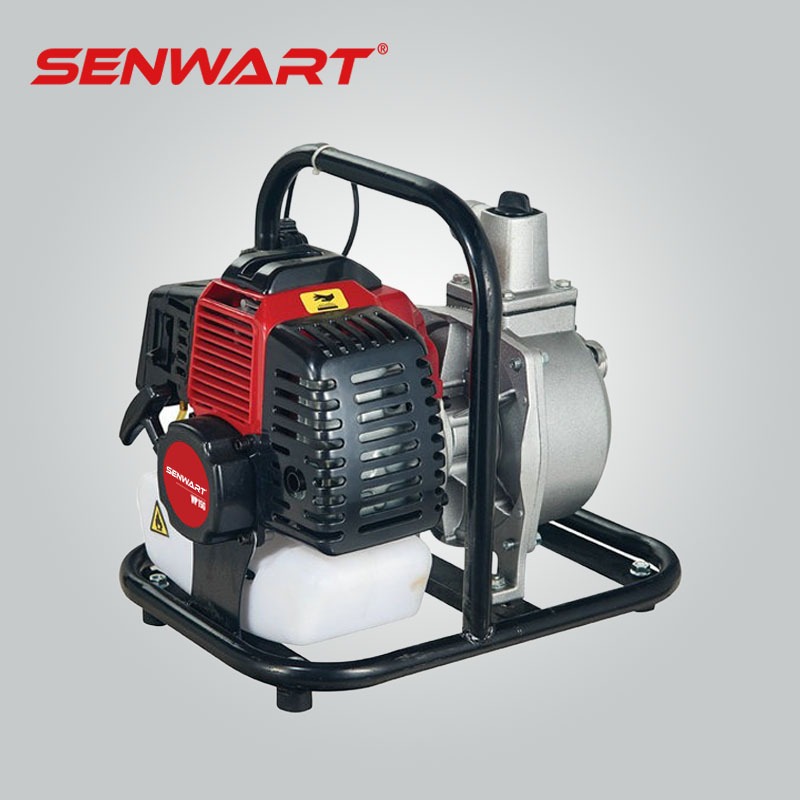

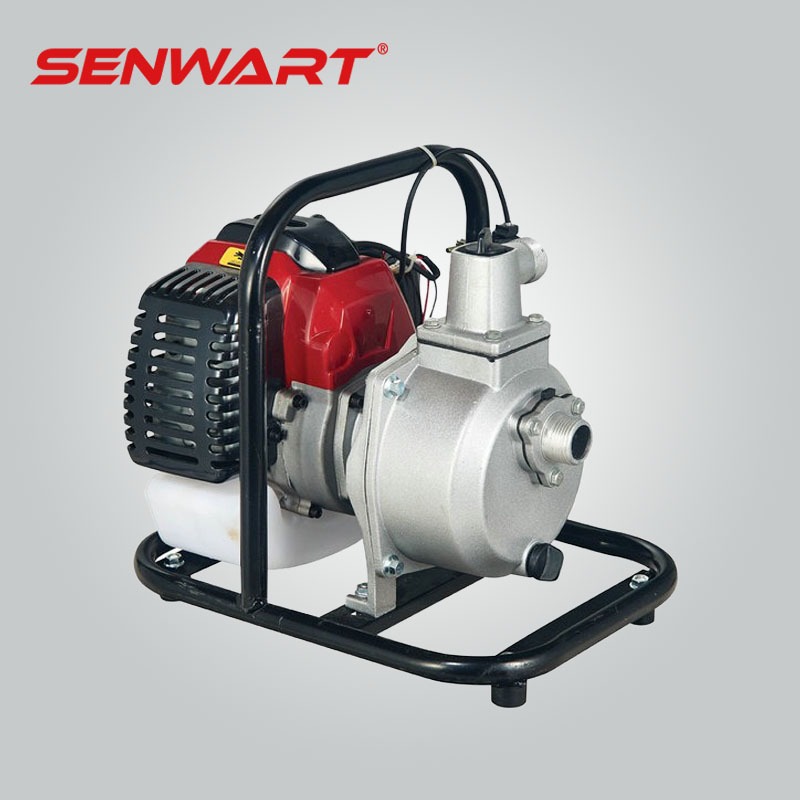

This gasoline water pump features a one-touch shut-off and user-friendly switch for easy operation.
A stable and reliable basket pump frame combined with rubber shock absorbing struts ensures optimum performance.
The engine and centrifugal water pump impeller are directly connected via a drive shaft, which improves transmission efficiency and allows for flexible adjustment of water flow.
MODEL: | WP15G |
| Engine type : | 1E40F-5 |
| Engine : | Single Cylinder, Two-stroke, Air-cooling |
| Displacement : | 42.7cc |
| Working speed : | 6,500rpm |
| Idle speed : | 2,800rpm |
| Power : | 1.3kW / 1.7HP |
| Outlet size : | 1.5" / 40mm |
| Inlet size : | 1.5" / 40mm |
| Max flow : | 8m³/h |
| Lift max : | 25m |
| Suction : | 7m |
| Fuel tank : | 1300ml |
| Compression ratio : | 7.7:1 |
| Start model : | Recoil |
| Fuel mixture ratio : | 25:1(Gasoline 25 : 2-cycle Oil 1) |
| Package : | 390x300x340mm |
| N.W./G.W. : | 11kg/12g |
| Qty.:20'/40'HQ : | 600pcs/1500pcs |
