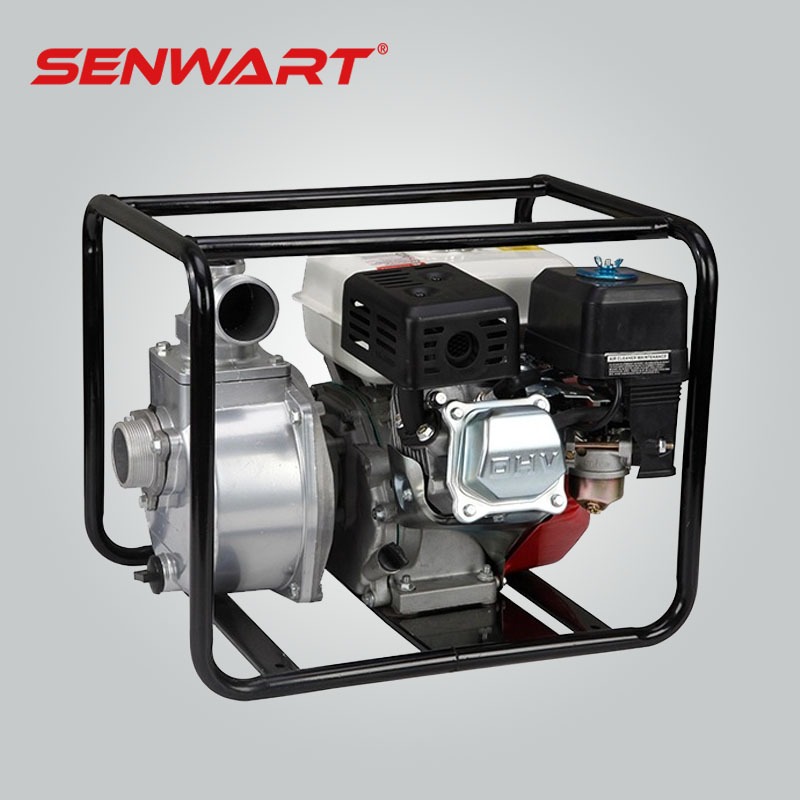

Senwart water pumps are equipped with an oil level alarm system: when the oil level is too low, the gasoline engine will automatically stop running to avoid specific damage to the engine.
Aluminum alloy and durable cast iron body can withstand high pressure and is more durable, with simple and reliable structure to maximize flow rate.
Wear-resistant graphite and ceramic magnetic mechanical seals are used to provide excellent sealing performance.
High-pressure pump with wear-resistant cast iron volute and aluminum alloy impeller to maximize flow.

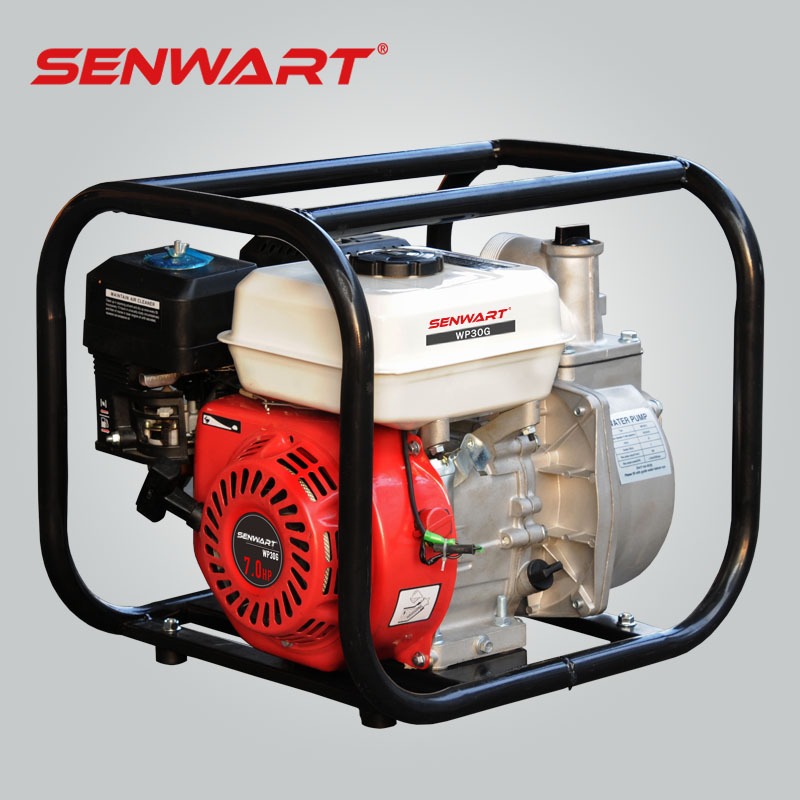

MODEL: | WP30G |
| Engine type : | 168F-1 |
| Engine : | 4 Stroke, single cylinder, air-cooled |
| Displacement : | 196cc |
| Motor type : | Gasoline |
| Engine : | 3,600rpm |
| Power : | 4.8kW / 6.5HP |
| Outlet size : | 3 inch / 80mm |
| Inlet size : | 3 inch / 80mm |
| Max flow : | 60m³/h |
| Total head : | 30m |
| Suction : | 8m |
| Fuel tank : | 3600ml |
| Compression ratio : | 8:05:01 |
| Start model : | Recoil |
| Oil tank : | 600ml |
| Package : | 505x410x450mm |
| N.W./G.W. : | 31kg/35kg |
| Qty.:20'/40'HQ : | 300pcs/600pcs |
