This machine is a professional grade tool with high quality carburetor and ignition for full performance.
The crankcase is made of magnesium alloy material, lightweight, CNC center machining, and good precision.
The engine provides maximum power at 9,300rpm and matches the output at high speeds for improved efficiency.
All machines are precisely tested and adjusted to ensure that the engine works stably at the right fuel consumption and temperature and that there will be no high temperature shutdown or difficulty starting under long-term high-speed operation.

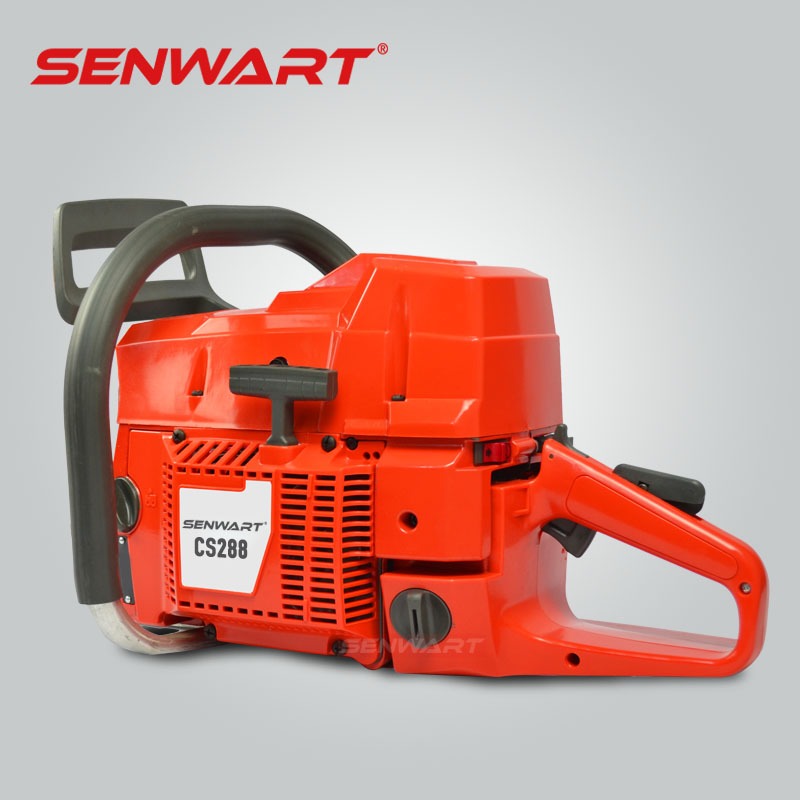

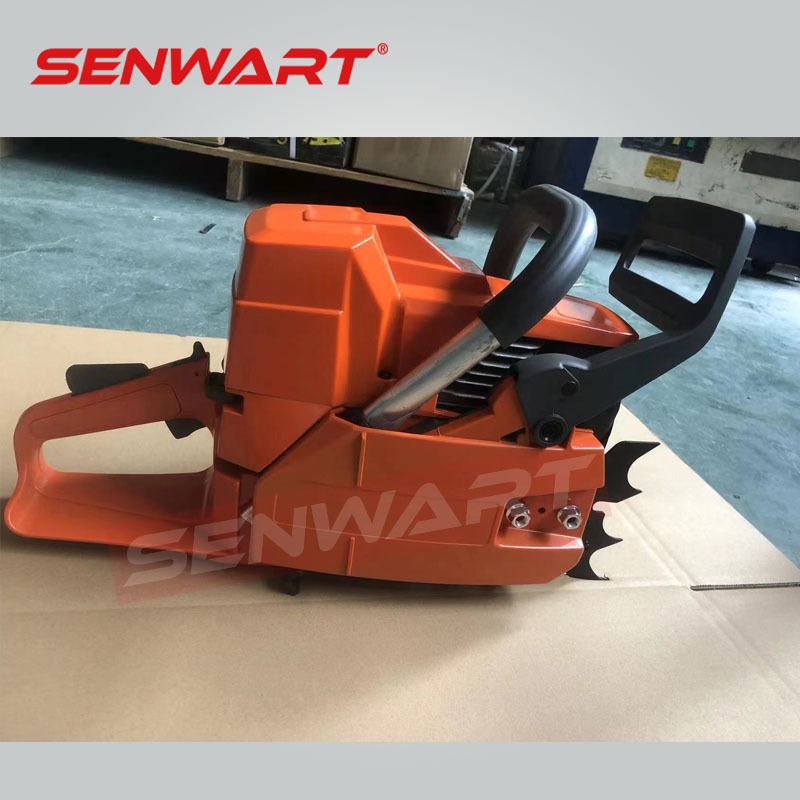

MODEL: | CS288 |
| Engine type : | Single Cylinder, Two-stroke, Air-cooling |
| Cylinder diameter : | 53mm*36mm |
| Power : | 4.5kW / 6.0HP |
| Displacement : | 87cc |
| Working speed : | 9,300rpm |
| Idle speed : | 2,500rpm |
| Fuel tank : | 900ml |
| Oil tank : | 500ml |
| Fuel mixture ratio : | 25:1(Gasoline 25 : 2-cycle Oil 1) |
| Standard bar lengths : | 30 inch/60cm |
| Chain pitch/gauge : | .404" - .063" |
| Optional bar lengths : | 24"-36" |
| Weight (without bar/chain) : | 7.6kg |
| Packing size : | 500*330*380mm |
