The crankcase is made of aluminum alloy, lightweight, CNC center machining, good precision.
The plastic material is made of high quality nylon reinforced material with good heat resistance and physical strength.
The engine provides maximum power at 9,000rpm and matches the output power at high speed to improve efficiency.
The grip holster gripping design increases friction and allows you to hold the machine firmly.
The braking system is responsive and reliable to meet the safety control requirements.
All machines are precisely tested and adjusted to ensure that the engine works stably at the right fuel consumption and temperature and that there will be no high-temperature shutdowns or difficult starting under long-term high-speed operation.

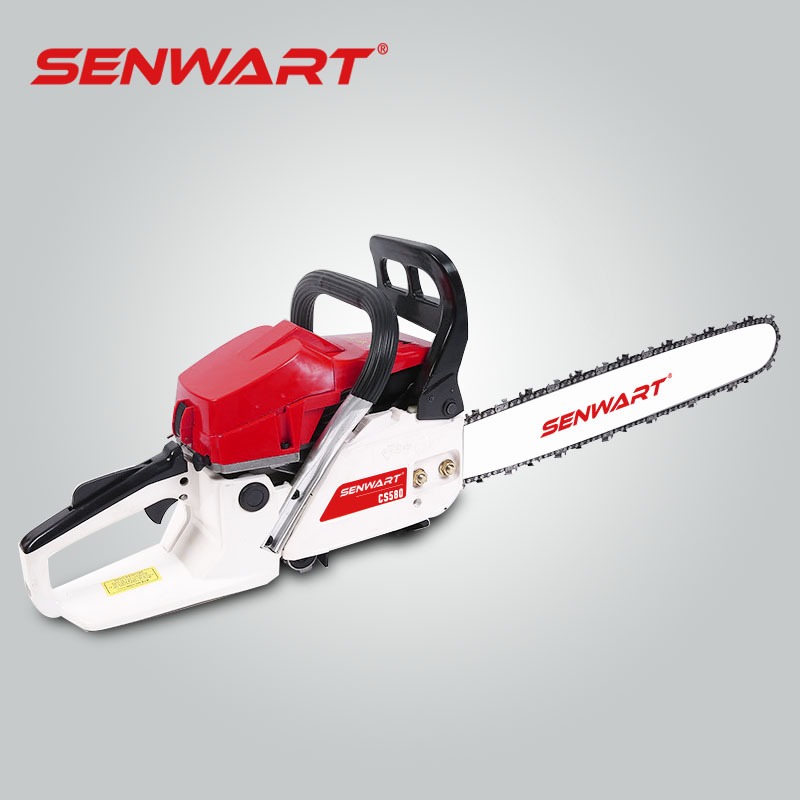

MODEL: | CS580 |
| Engine type : | Single Cylinder, Two-stroke, Air-cooling |
| Cylinder diameter : | 45mm*34mm |
| Power : | 2.2kW / 3.0HP |
| Displacement : | 54.5cc |
| Working speed : | 9,000rpm |
| Idle speed : | 2,800rpm |
| Fuel tank : | 550ml |
| Oil tank : | 260ml |
| Fuel mixture ratio : | 25:1(Gasoline 25 : 2-cycle Oil 1) |
| Standard bar lengths : | 20 inch/50.8cm |
| Chain pitch/gauge : | .325" - 3/8"/.058" |
| Optional bar lengths : | 16"-24" |
| Weight (without bar/chain) : | 5.2kg |
| Packing size : | 505*255*290mm |
