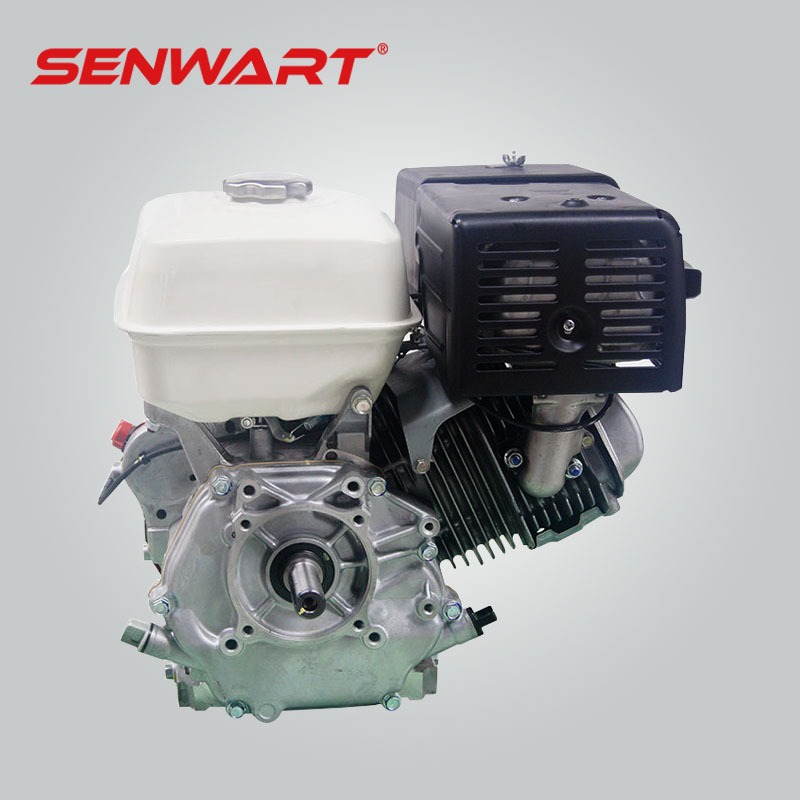

Engine Features:
OHV design improves combustion efficiency.
High power to displacement ratio.
Automatic decompression system and easy to grip soft recoil starter handle make starting easier.
High quality materials and specialized components ensure reliable, long-term use.
Compliance with the world's most stringent environmental regulations.
Low fuel and oil consumption.
Reduced vibration and noise levels.
MODEL: | PE225G |
Engine model : | 170F |
Engine type : | 4-stroke, Air-cooled, Gasoline |
Bore stroke : | 70×58mm |
Displacement : | 223cc |
Compression Ratio : | 8.5:1 |
Ignition system : | T.C.I |
Power : | 6kW/8.0HP |
Rated speed : | 3600rpm |
Max torque : | 15N.m |
Fuel tank | 3.6L |
Fuel Consumption : | ≤395g/kw.h |
Oil capacity : | 600ml |
N.W./G.W. : | 15kg/16kg |
