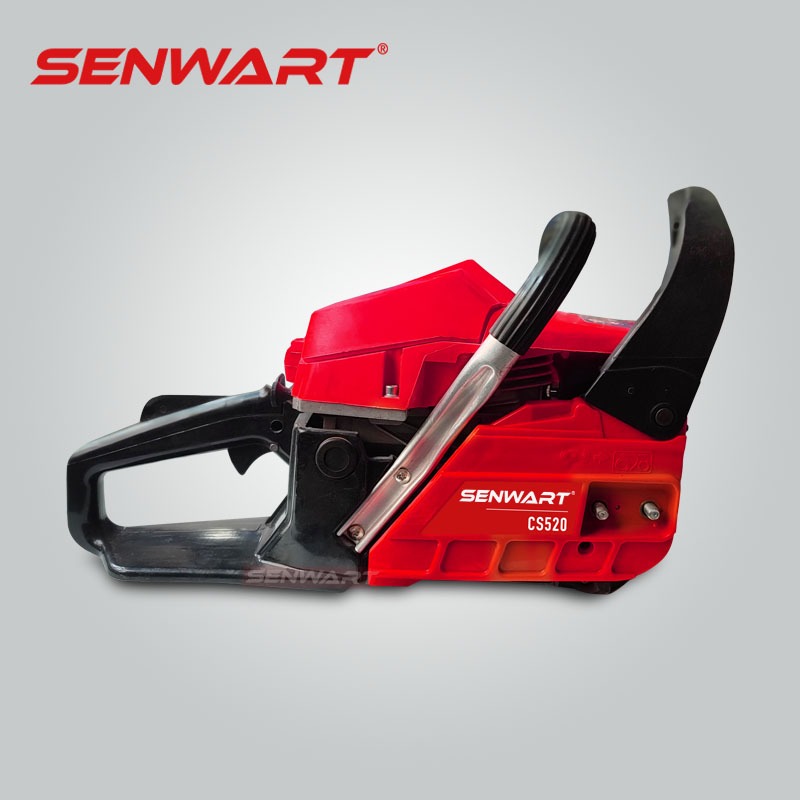

MODEL: | CS520 |
Engine type : | Single Cylinder, Two-stroke, Air-cooling |
Cylinder diameter : | 45mm*31mm |
Power : | 2.0kW / 2.7HP |
Displacement : | 52cc |
Working speed : | 11,200rpm |
Idle speed : | 2,800rpm |
Fuel tank : | 550ml |
Oil tank : | 260ml |
Fuel mixture ratio : | 25:1(Gasoline 25 : 2-cycle Oil 1) |
Standard bar lengths : | 18 inch/45.7cm |
Chain pitch/gauge : | .325"/.058" |
Optional bar lengths : | 16"-22" |
Weight (without bar/chain) : | 6.0kg |
Packing size : | 505*255*290mm |
