The efficiency of your brush cutter depends on many factors, including fuel capacity, shaft type, speed, weight, and oil/gasoline mix ratio. Read the following paragraphs to learn what makes the HC520B-H a popular tool for farmers or gardeners.
Engine and Mechanisms:
Thanks to the high-powered 1600w 2-stroke engine, the Senwart HC520B-H wheeled brush cutter excels in high-intensity cutting operations. With a displacement of 51.7cc and a maximum speed of 8,00 RPM, this engine provides incredibly high torque to cut through the toughest areas without putting too much stress on the tool.
The new smart starter ball start system allows the machine to start with less effort and the CHAMPION ignition system ensures powerful and smooth operation.
Last but not least, the engine is equipped with a clean air intake system that provides clean air during operation.
Body and Switch:

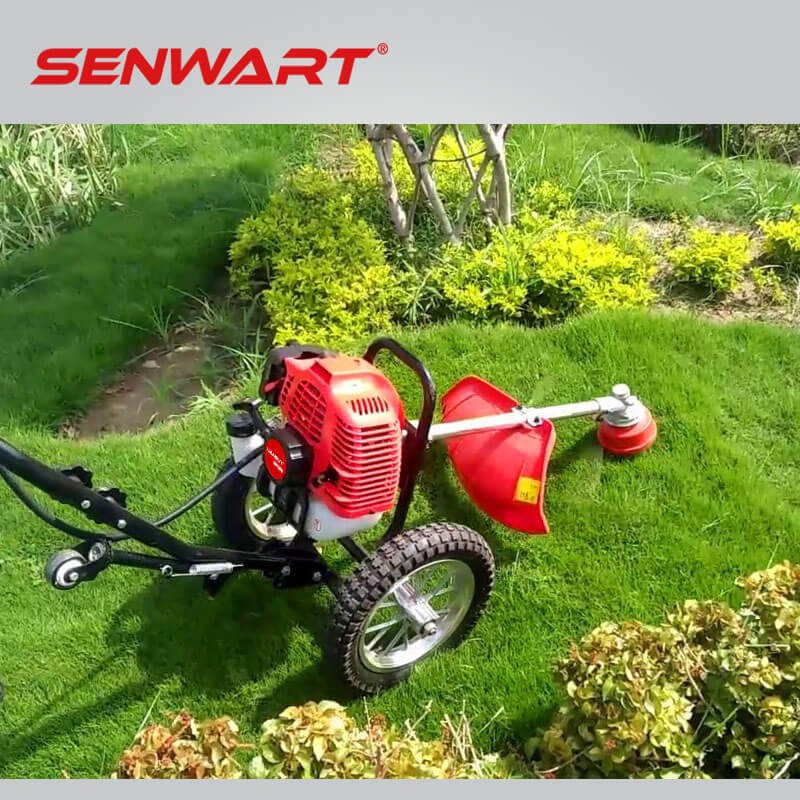

The Senwart HC520B-H wheeled brush cutter weighs 15kg and is therefore equipped with two large wheels for easy portability. It features an ergonomic aluminum bike style handle with a rubber cover to provide greater convenience and better control to the user.
Talking about the on/off switch, this brush cutter is equipped with a combination throttle structure for efficient operation.
Shaft:
The Senwart HC520B-H features a 9-tooth complete shaft that transmits power from the body to the tool's metal blade or trimmer head via a 28 mm diameter work bar. This steel shaft is of extremely high quality, durable and long-lasting.
Blades:
The Senwart HC520B-H comes with a nylon trimmer head for a clean and efficient cutting operation and a Senwart design guard. This brush cutter also comes with a nylon wire blade that ensures perfect accuracy in trimming.
Fuel tank:
The Senwart HC520B-H runs on gasoline. It has a fuel capacity of 1,000ml and a gasoline mix ratio of 1:25.
Packaging and Accessories:
This brush cutter comes packaged in a Senwart box containing useful accessories such as 2 wheels, a nylon trimmer head, a guard, an oil mix bottle and a tool kit.
MODEL: | HC520B-H |
| Engine type : | 1E44F-5 |
| Engine : | Single cylinder, Two-stroke, Air-cooling |
| Displacement : | 51.7cc |
| Working speed : | 8,000rpm |
| Idle speed : | 3,000rpm |
| Power : | 1.6kW / 2.1HP |
| Fuel tank : | 1,000ml |
| Carburetor : | Diaphragm |
| Fuel mixture ratio : | 25:1(Gasoline 25 : 2-cycle Oil 1) |
| Pole diameter : | 28mm |
| Tilling width : | 16" / 40cm |
| Cutting Head : | Metal blade / Nylon head |
| Engine Carton Meas : | 350x310x235mm |
| Work Pole Meas : | 1650x110x110mm |
| N.W./G.W. : | 13kg/16kg |
| Qty.:20'/40'HQ : | 480pcs/1020pcs |
Features
- 51.7cc, high powered 2 stroke, 1.6kw engine excels in heavy-duty operations.
- High-torque engine lets you cut through the toughest areas with less strain on the engine.
- Ergonomic aluminum bike style handles with rubber caps for increased comfort and precise control.
- Line blade maintains the perfect length of the trimming line.
- Engine clean air intake system.
- Combination throttle switch construction.
- Durable, high-quality steel shafts for longer service life.
- The senwart start system makes machine startup easier and less laborious.
- Anti-vibration system for more comfortable operation and less fatigue during long working hours.
- Superior Champion ignition system for powerful and smooth operation.
- Newly designed clutch system for better performance and efficiency.
- Senwart design shield for cleaner operation.
- Equipped with two large wheels for easy mobility on uneven surfaces.
