High quality materials and components, such as cast iron cylinder liners and forged steel crankshafts, enable small diesel engines to cope with the most challenging applications, ensuring reliable and long-lasting use.
Diesel engines are widely used in small agricultural machinery such as micro-tillers, pasture management machines, irrigation and drainage machines, generator sets, small transport vehicles, small walk-behind tractors, and are also an excellent choice for driving water pumps and other equipment due to their high power-to-weight ratios, high fuel efficiency, and the ability to run continuously for long periods of time.

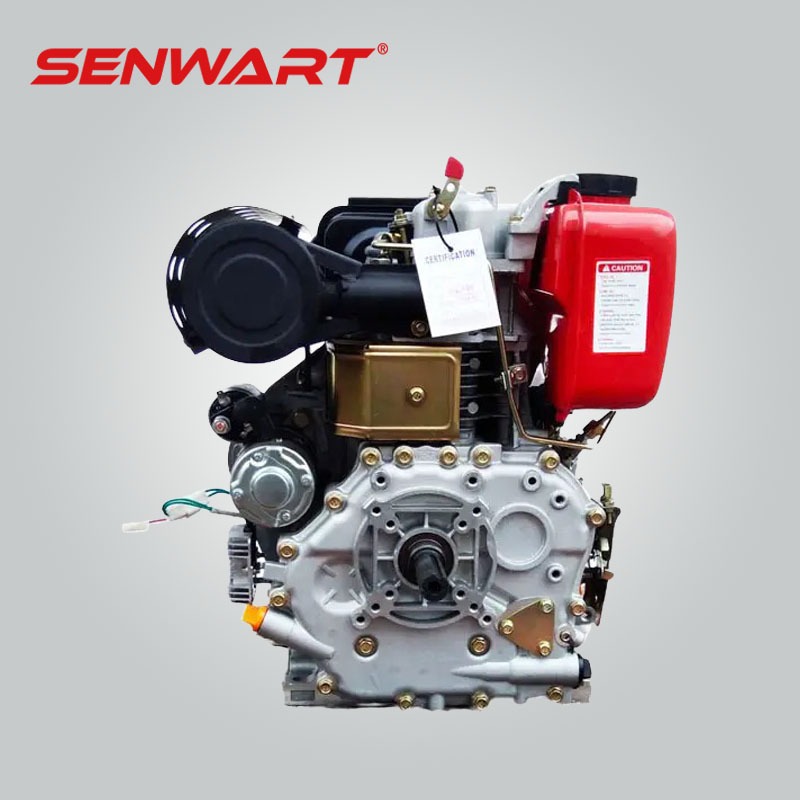

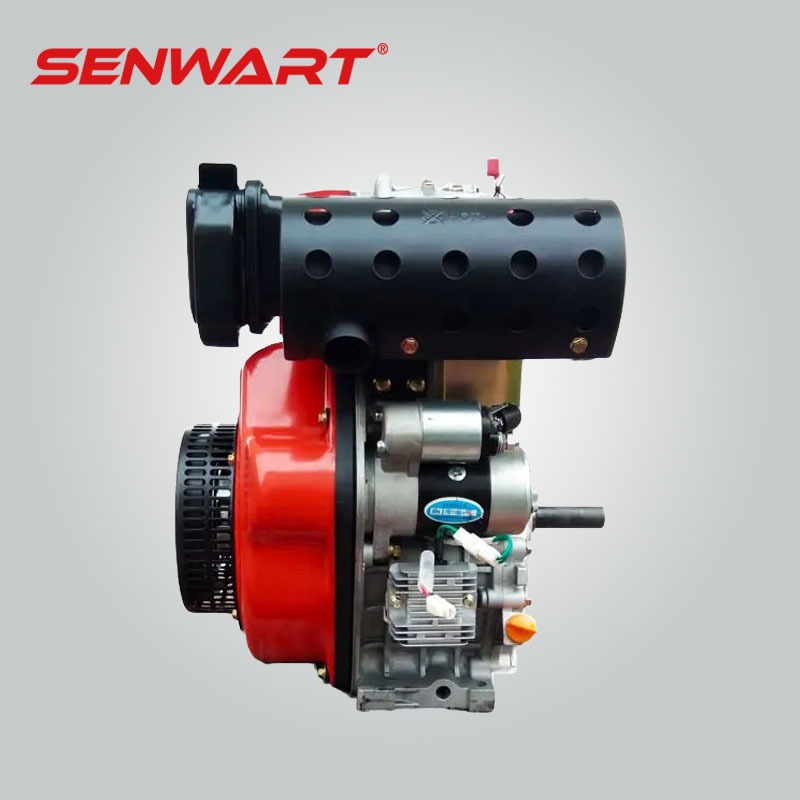

MODEL: | PED188F |
| Engine model : | 188F |
| Engine type : | 4-stroke, Air-cooled, Diesel Engine |
| Bore stroke : | 88×75mm |
| Displacement : | 456cc |
| Power : | 7.5kW/10HP |
| Rated speed : | 3600rpm/min |
| Compression ratio : | 19.5:1 |
| Fuel tank | 5.5L |
| Oil tank : | 1.65L |
| Fuel consumption : | ≤280g/kWh |
| Start system : | Recoil/Electric |
| N.W./G.W. : | 48kg/50kg |
